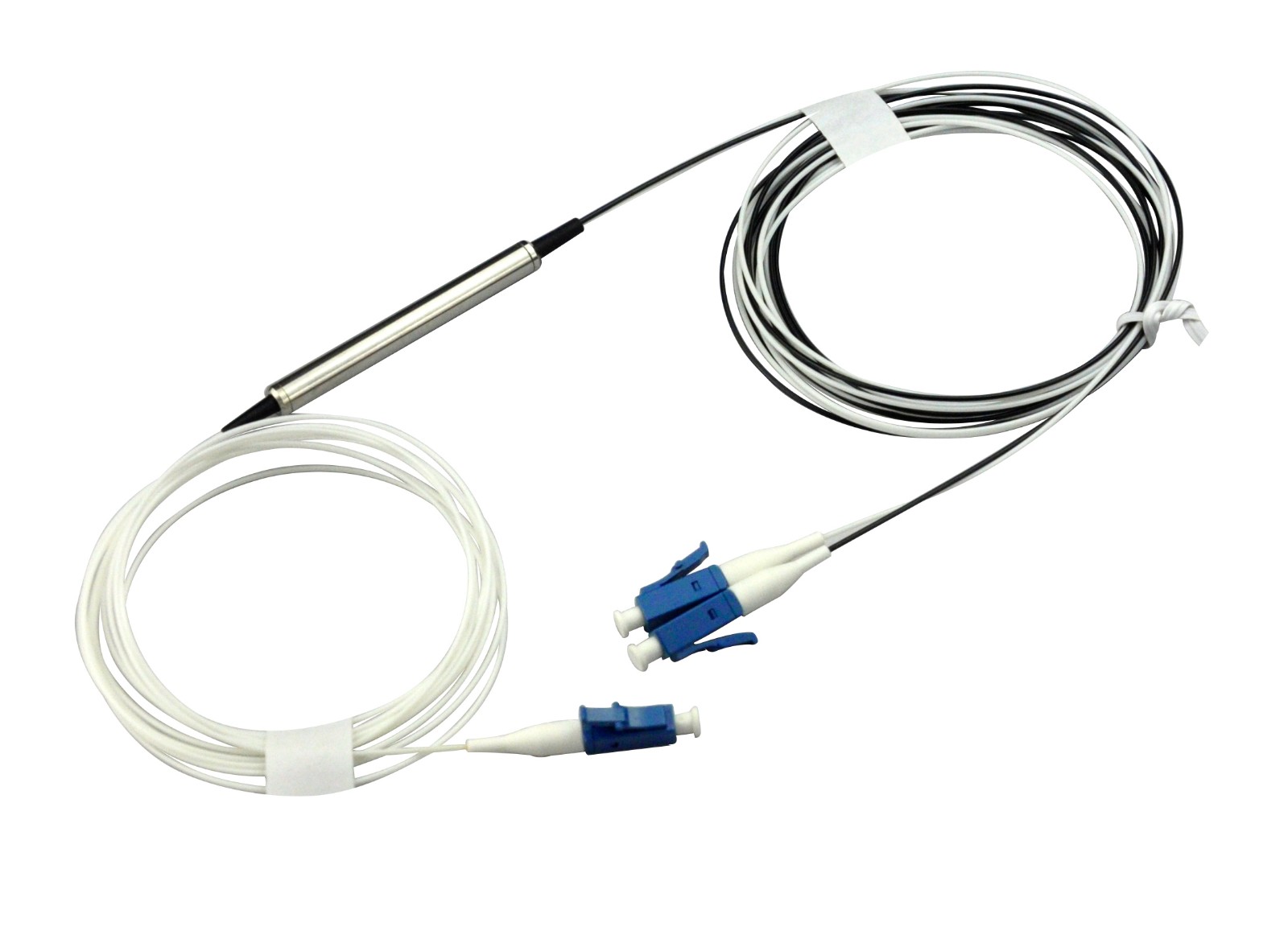

1x2 FWDM device is based on the thin film filter technology, which can add or drop different optical wavelength in the optical network, the isolation and narrow width wavelength separating ability is high.
l High Channel Isolation, low Insertion Loss.
l Epoxy free on optical path.
l High Stability and reliability.
l Material meet RoHS.
l Meet GR 1209, GR 1221 requirement.
Parameter
Min
Typical
Max
Working Wavelength Range(nm)
1260~1650
Passband Wavelength (nm)
1260~1360(customized)
Relection wavelength(nm)
1460~1650(customized)
Pass Channel Insertion Loss (dB)
0.6
Reflection Channel Loss (dB)
0.4
Ripple(dB)
0.3
Pass Channel Isolation(dB)
40
Reflection Channel Isolation(dB)
15
Directivity(dB)
50
Return Loss(dB)
45
Polarization Dependent Loss (dB)
0.1
Polarization Mode Dispersion(ps)
Maximum Optical Power (mW)
300
Operating Temperature Range (℃)
-5~+70
Storage Temperature Range(℃)
-40~85
Optical fiber type
Corning SMF 28e+ or equal(customized)
Optical fiber length(m)
≥1.0(customized)
Package dimension (mm)
All glass for bare fiber type Ø4.0x26
Steel tube for loose tube type Ø5.5x39
l FTTx
l NGPON
l Broadband Networks
l Optical Add/Drop Multiplexing
l Telecommunications
l Metro Networks
l CATV Systems
